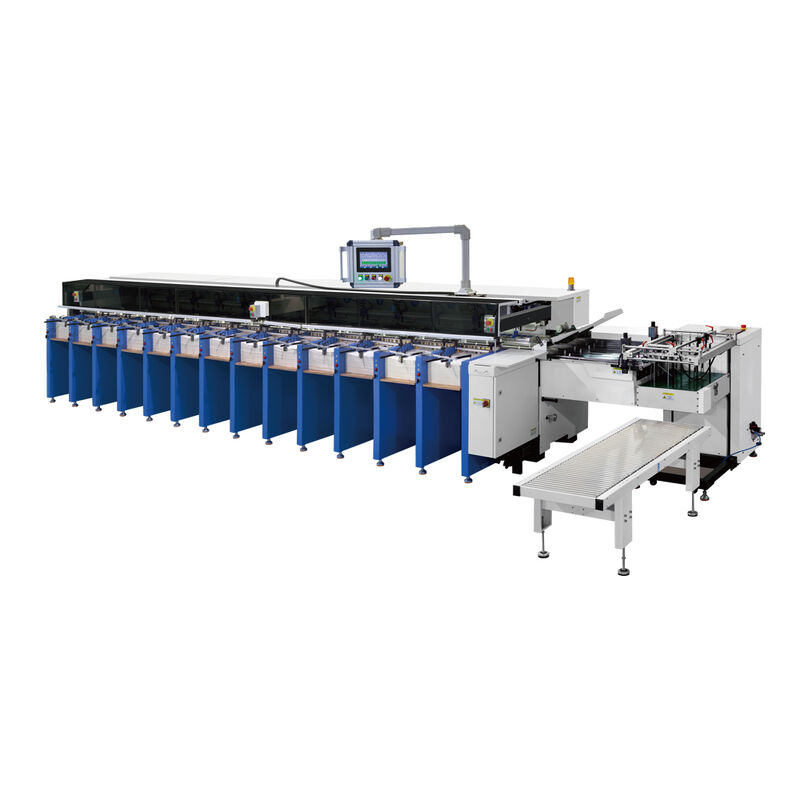

Industrial Horizontal Gatherer jogger bridge connected normal cross mixed output mode

Name: Industrial Horizontal Gatherer jogger bridge connected normal cross mixed output mode
Brand: Dongguan Haoxin Precision Machinery Co., Ltd.
SKU: HXWG900
Price: 87500 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: HXCP

Sertifikasi: CE

Nomor model: HXWG900

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 Set

Harga: USD 87500 per set

Kemasan rincian: Stretch Film dengan Kotak Kayu

Waktu pengiriman: 30 hari kerja

Syarat-syarat pembayaran: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Menyediakan kemampuan: 10 set/bulan

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Rincian produk

Menyoroti:
                                                                                                                                                                                                                HXWG horizontal gathering machine, industrial gatherer jogger bridge, mixed output mode machine


Maks. Ukuran:	900×600mm	Minimal. Ukuran:	210x50mm
Sebuah Stasiun:	5/10/15	Kecepatan Tercepat (1-1):	2800 pcs/jam
Ketebalan Kertas:	20-1000gsm

Maks. Ukuran:	900×600mm
Minimal. Ukuran:	210x50mm
Sebuah Stasiun:	5/10/15
Kecepatan Tercepat (1-1):	2800 pcs/jam
Ketebalan Kertas:	20-1000gsm

Deskripsi Produk

Efficient and accurate sheet collating is indispensable to streamline post-press book production. The Horizontal Gathering Machine stands out as a reliable collating device built to resolve irregular alignment and limited-format troubles common in traditional gathering equipment.

Adopting advanced scale transport technology, the machine completes cyclic precise left head-edge alignment for paper and various raw materials. Such accurate positioning lays a solid foundation for neat signature gathering and avoids skewed sheets that lead to defective finished books.

It supports flexible multi-format collating inside the jogger structure, enabling two optional discharging modes including standard normal delivery and practical criss-cross delivery. Factories can switch output styles freely to match diversified binding technological requirements of different printed products.

A Max. Size
900×600mm

A Min. Size
210×50mm

A Stations
5/10/15

B Max. Size
600×480mm

B Min. Size
210×50mm

B Stations
10/15/20

C Max. Size
480×320mm

C Min. Size
210×50mm

C Stations
8/13/15/16/26

Fastest Speed(1-1)
2800pcs/h

Fastest Speed(2-1)
2800pcs/h

Fastest Speed(1-2)
5000pcs/h

Paper Thickness
20-1000gsm

Relying on mature belt transmission design, the equipment delivers stable and smooth sheet conveyance throughout continuous production runs. It effectively prevents sheet jamming, scratching or shifting, consistently keeping outstanding collating quality for long-time batch manufacturing.

Fitted with built-in counting and stacking delivery system, the machine arranges collected signatures neatly after collation. Operators save plenty of sorting time and cut extra manual labor during finished material collection.

Thanks to the reserved jogger bridge structure, users can flexibly set independent stacking output or dock the gatherer with downstream finishing machines. Perfect inline connection forms automatic production lines and greatly boosts overall workshop productivity.

With flexible delivery modes, stable belt drive and easy line expansion, this horizontal gathering machine is a cost-effective collating choice for printing houses producing notebooks, magazines and various bound printed items.
